Browse all products
ConductIP

ConductIP

NMOS-based IP media routing solution for discovering, monitoring, and routing SMPTE ST 2110 and IPMX devices via a web browser interface, available as a hardware appliance or software-only deployment.

Deployment: Standalone appliance | Software-only Network: 10/25GbE uncompressed; 1/2.5/10/25GbE compressed | Customer-provided infrastructure Standards: AMWA NMOS, ST 2110, IPMX
Matrox Products
ConductIP
ConductIP
Standalone appliance, 10/25GbE uncompressed; 1/2.5/10/25GbE compressed, AMWA NMOS, ST 2110, IPMX
ConductIP (Hardware)
Our Price: Request a Quote
Get a Quote
ConductIP
Software-only, Customer-provided infrastructure, AMWA NMOS, ST 2110, IPMX
ConductIP (Software)
Our Price: Request a Quote
Get a Quote

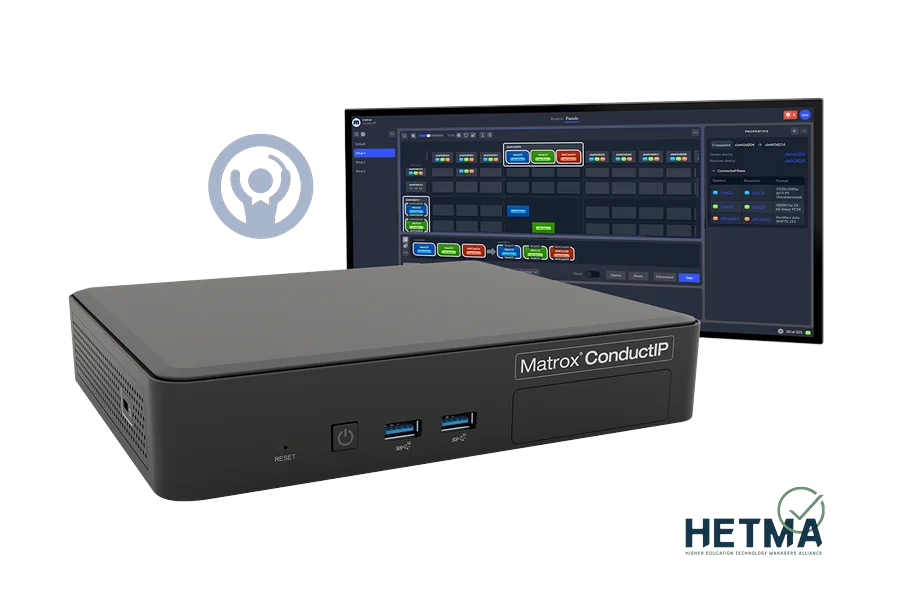

Matrox ConductIP is an NMOS-based IP media routing solution that discovers, monitors, and routes SMPTE ST 2110 and IPMX video sources and destinations through a web browser interface. Available in both a dedicated hardware appliance and a software-only tier, ConductIP implements AMWA NMOS IS-04 and IS-05 for device discovery and connection management across IP media networks. The hardware appliance supports uncompressed ST 2110 video at 10 and 25GbE, as well as compressed IP video at 1, 2.5, 10, and 25GbE.

The software-only deployment tier allows organisations to run ConductIP on their own server infrastructure, eliminating the need for a dedicated hardware appliance where compute resources are already available. Both tiers provide the same web-based routing panel for making and breaking connections between NMOS-registered sources and destinations. ConductIP operates within the open NMOS ecosystem, making it compatible with devices from multiple manufacturers that implement AMWA NMOS standards alongside the Matrox IP media product range.

NMOS IS-04 and IS-05 Control

Implements AMWA NMOS IS-04 for device discovery and IS-05 for connection management, integrating with any compatible NMOS device across a multi-vendor IP media network.

Web Browser Routing Interface

The routing panel operates entirely in a web browser with no client software installation, allowing operators and engineers to manage connections from any networked workstation.

Hardware or Software Deployment

Available as a dedicated hardware appliance with 10/25GbE support or as a software-only tier for deployment on customer-provided server infrastructure.

ST 2110 and IPMX Support

Routes both SMPTE ST 2110 uncompressed IP video and IPMX compressed streams, covering the primary open standards for professional IP media in broadcast and AV environments.

Technical Specifications

Full specifications for ConductIP

  • Hardware Appliance
    ConductIP MRA (Media Routing Appliance) — compact form factor with built-in web server; part number CDTCIP-MRA
  • Software Deployment
    Software-only installation available on existing server infrastructure
  • User Interface
    Web browser-based; accessible remotely or locally via monitor, keyboard, and mouse

  • NMOS Standards
    AMWA NMOS IS-04 (Discovery & Registration), IS-05 (Connection Management), IS-09 (System Parameters)
  • IP Media Protocols
    SMPTE ST 2110 (uncompressed); IPMX — Internet Protocol Media Experience (compressed)
  • Time Synchronization
    PTP IEEE 1588 (ports 319 and 320 UDP); NTP (Network Time Protocol)
  • Network Discovery
    mDNS (Multicast DNS, port 5353); DNS-SD (unicast DNS service discovery); SAP (port 9875)

  • Internal Registry
    Built-in NMOS IS-09 registry, enabled by default; configurable priority 0–99
  • Registry Selection Modes
    Internal; Manual (specify IP, query port, registration port); Automatic (DNS-based discovery)
  • Registry Protocol
    HTTP or HTTPS (selectable)
  • NMOS Query Ports
    8870–8877 TCP/UDP (websocket)
  • NMOS Registration Port
    8235 TCP/UDP

  • User Roles
    Administrator (full access); Super Operator (Room/Panel management); Operator (assigned rooms and connections only)
  • Directory Authentication
    LDAP integration with configurable search domains and server addresses
  • Certificates
    SSL/TLS certificate management; import custom certificates; Root CA download
  • REST API
    Public REST API (OpenAPI/Swagger); requires ConductIP version 2.02.00 or later; supports preset retrieval and application

  • Rooms
    User-defined groupings of NMOS devices and groups; assignable to specific operators
  • Panels
    Matrix-mode crosspoint interface for connecting senders (Tx) to receivers (Rx)
  • Presets (Salvos)
    Saved multi-connection configurations; Take, Queue, and Direct execution modes; import/export between panels
  • Non-NMOS Sources
    Support for adding non-NMOS senders to ConductIP rooms
  • Database
    Export and import for backup and configuration transfer

  • Supported Browsers
    Microsoft Edge, Google Chrome, Mozilla Firefox (Windows and macOS)
  • Progressive Web App
    PWA installation supported for desktop access without a browser window

  • FCC
    Class A digital device (USA)
  • ICES
    Class A (Canada)
  • CE
    EC Directive 2014/30/EU, Class A; EN55032/CISPR32, EN55035/CISPR35 (Europe)
  • UK
    UK SI 2016 No. 1091; EN55032/CISPR32, EN55035/CISPR35
  • KC
    Class A (Korea)

Documentation

Download product documentation and resources

Product Datasheet

ConductIP Datasheet
