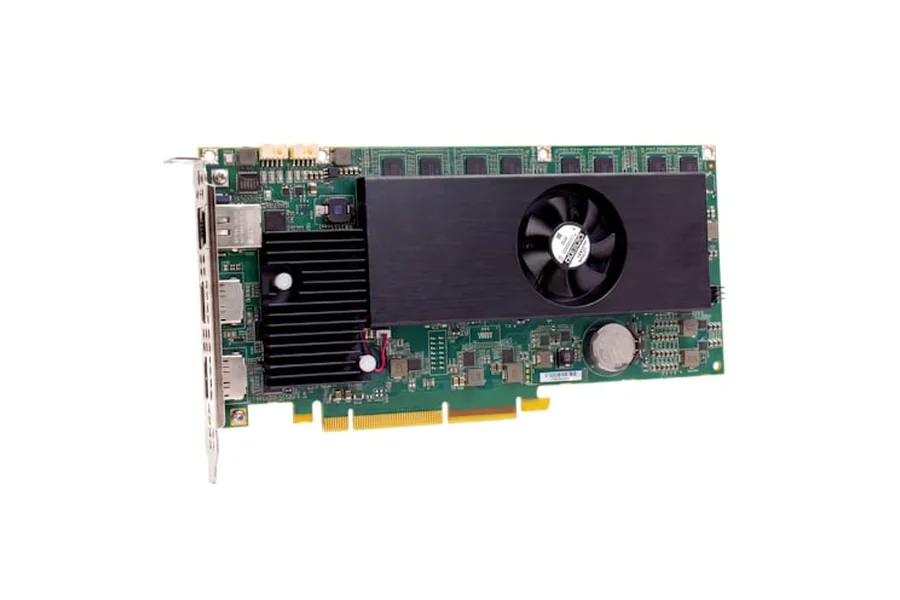

Mura IPX Series

High-density PCIe capture and IP encode/decode cards for video wall control rooms, combining physical DisplayPort, HDMI, or SDI capture inputs with on-board H.264 encoding and IP stream decoding.

Matrox Products

Mura IPX Series

Mura IPX Series
2x DP, —, 4x 4K / 16x HD

Mura IPX D2MF (fan)
Our Price: Request a Quote

Get a Quote

Mura IPX Series
2x DP, —, 4x 4K / 16x HD

Mura IPX D2MHF (fanless)
Our Price: Request a Quote

Get a Quote

Mura IPX Series
4x Mini HDMI, —, 4x 4K / 16x HD

Mura IPX D4JF (fan)
Our Price: Request a Quote

Get a Quote

Mura IPX Series
4x Mini HDMI, —, 4x 4K / 16x HD

Mura IPX D4JHF (fanless)
Our Price: Request a Quote

Get a Quote

Mura IPX Series
2x DP, 2x 4K60 H.264, 4x 4K / 16x HD

Mura IPX E2MF (fan)
Our Price: Request a Quote

Get a Quote

See all 10 models below

The Matrox Mura IPX Series combines physical video capture inputs — DisplayPort, Mini HDMI, or 12G-SDI — with on-board H.264 encoding and IP stream decoding on a single PCIe card, reducing the hardware footprint of video wall control room systems. Ten models spanning fan-cooled and fanless variants provide flexible combinations of input type, encoding capability, and cooling method. Decode capacity on all models reaches four simultaneous 4K streams or sixteen 1080p HD streams, sufficient for large multi-source control room installations.

The Mura IPX E-series cards add H.264 encoding output alongside decoding, enabling the same card to simultaneously ingest physical SDI or HDMI sources and distribute encoded IP streams to downstream systems. D-series (decode-only) cards focus entirely on IP stream decode for installations where encoding is handled elsewhere in the network. All Mura IPX cards install in standard PCIe slots and are compatible with Matrox video wall software for source routing, scaling, and display arrangement across connected panels.

DP, HDMI, and SDI Physical Inputs

Three input format families — DisplayPort, Mini HDMI, and 12G-SDI — cover the full range of professional video wall source connections without requiring separate capture cards per interface type.

On-Board H.264 Encoding

E-series models encode captured physical inputs to H.264 IP streams on-card, enabling simultaneous local capture and network distribution from the same PCIe slot.

Four 4K or Sixteen 1080p Decode

All Mura IPX variants decode up to four simultaneous 4K IP streams or sixteen 1080p30 streams, handling high-density multi-source displays in a single card.

Fan and Fanless Variants Available

Each input and encode/decode configuration is offered in both active fan-cooled and passive fanless versions, allowing selection of the appropriate cooling method for the operating environment.

Technical Specifications

Full specifications for Mura IPX Series

Available Input Types

4× Mini HDMI Type C; or 2× DisplayPort® 1.2; or 2× 12G-SDI + 2× 3G-SDI (per model)
Maximum Input Resolution (HDMI/DP)

4096×2160 @60 Hz; 4096×2160 @30 Hz; 3840×2160 @60 Hz; 3840×2160 @30 Hz; 2560×1600 @60 Hz
SDI Input

12G-SDI on connectors 2 and 4; 3G-SDI, HD-SDI, SD-SDI on all connectors (SDI models)
HDCP Compliance

Capture, display, and scale HDCP sources (with Matrox D-Series graphics card)

Codec

H.264/MPEG-4 Part 10 (AVC) up to Level 5.2
H.264 Profiles

Baseline, Main, High, High 10, High 4:2:2, High 4:4:4 Predictive
Encode Capacity <em>(Encode models)</em>

2× 3840×2160 @60 Hz; 4× 3840×2160 @30 Hz; 8× 1920×1080 @60 Hz; 16× 1920×1080 @30 Hz; or numerous SD channels
Decode Capacity

2× 3840×2160 @60 Hz; 4× 3840×2160 @30 Hz; 8× 1920×1080 @60 Hz; 16× 1920×1080 @30 Hz; or numerous SD channels
Encoder/Decoder Bitrates

100 Kbps to 500 Mbps CABAC; 100 Kbps to 800 Mbps CAVLC
Rate Control

CBR, VBR, VBR with constraints; configurable GOP structure

Pixel Transfer Formats

RGB 8:8:8 and 10:10:10; YUV 4:4:4, 4:2:2, 4:2:0 (8/10-bit); MONO 8/10-bit; color space conversion support
Video Compositing

Multi-channel Composite, Key, Blend, Crop, Mirror, Flip
Video Scaling

Matrox Advanced MultiTap Video Scaling Engine (4K to SD and SD to 4K)
Video Deinterlacing

Adaptive deinterlacer and antialiasing technology

Audio Format

AAC, PCM, Stereo, Mono
Audio Sampling Rate

32 KHz to 96 KHz

On-Board NIC

Dedicated on-board RJ45 network interface per card
Network Standard

Ethernet 10/100/1000 Base-T, auto-detect, half/full-duplex
IP Addressing

IPv4/IPv6; DHCP (default) and Static IP; Unicast, Multicast, Multiple Unicast
Streaming Protocols

SRT, RTP, RTSP, MPEG2-TS, RTMP
Command & Control

RS-232, Telnet, HTTP/HTTPS

Bus Interface

PCIe x16 Gen 2 mechanical (x8 electrical)
On-Board Memory

8 GB (34 GB/sec bandwidth)
Form Factor

Single-slot PCIe card
Cooling

Active fan sink or Fanless (per SKU)

Operating System

Linux; Windows 7 and Windows 10 (64-bit, all Professional/Standard/Embedded/Server editions)
Management Software

Matrox MuraControl™ for Windows; MuraControl for iPad (free)
Developer APIs

Mura Network API; Matrox VWLib API; Matrox DWC API; DirectShow support

Typical Power Consumption

30.7 W total (24.6 W @12V + 6.1 W @3.3V)

Dimensions (L × H)

22.91 cm × 11.13 cm (9.02 in × 4.38 in)
Weight

304 g (fan sink); 268 g (fanless)
Part Numbers

HDMI Encode/Decode: MURAIPXI-E4JF / MURAIPXI-E4JHF; HDMI Decode: MURAIPXI-D4JF / MURAIPXI-D4JHF; DP Encode/Decode: MURAIPXI-E2MF / MURAIPXI-E2MHF; DP Decode: MURAIPXI-D2MF / MURAIPXI-D2MHF; SDI Encode: MURAIPXI-E4SF / MURAIPXI-E4SHF
