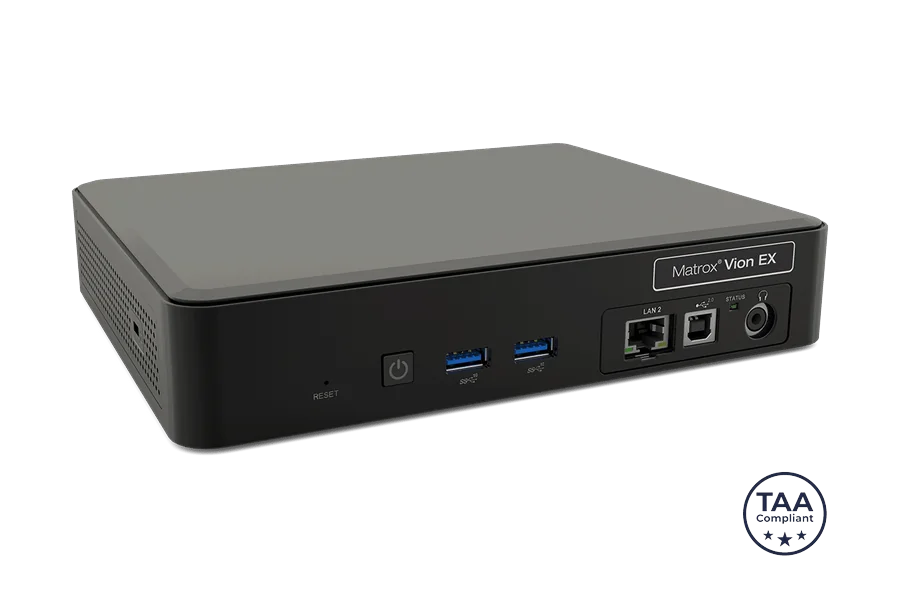

Vion Series IP Video Gateway Appliances

The Matrox Vion Series is a range of compact appliances that function as multi-protocol IP video gateways, bridging SDI, HDMI, and network video formats within live broadcast and production IP workflows. The Vion EX includes 12G-SDI and HDMI 2.0 physical I/O alongside IP connectivity, while the Vion NX provides a more compact form factor with HDMI preview output and 1/2.5GbE RJ45 network connectivity. Both support encoding, decoding, and transcoding across H.264, H.265, JPEG XS, and NDI simultaneously.

Cross-format conversion — translating between NDI, H.264, H.265, and JPEG XS on a single appliance — makes the Vion Series useful in hybrid facilities transitioning from SDI to IP or integrating NDI production tools with SMPTE ST 2110 infrastructure. 10-bit 4:2:2 and 4:4:4 colour depth is supported for broadcast-grade fidelity on the Vion EX. The compact appliance form factors require no rack space for smaller deployments and can be rackmounted using the compatible Matrox rack mount kit when required.

Multi-Protocol Gateway

Converts between H.264, H.265, JPEG XS, and NDI on a single appliance, bridging production tools and infrastructure that use different IP video standards without additional conversion hardware.

SDI and HDMI Physical I/O (Vion EX)

The Vion EX provides 12G-SDI and HDMI 2.0 physical connections alongside IP network ports, bridging traditional baseband formats directly with IP media networks.

10-Bit 4:2:2 and 4:4:4 Colour

Supports broadcast-grade 10-bit colour depth in both 4:2:2 and 4:4:4 sampling, preserving colour accuracy through gateway encode, decode, and transcode operations.

Compact Appliance Form Factor

Both Vion models are purpose-built compact appliances requiring minimal physical space, with rack mounting available via the optional Matrox rack mount kit.

Technical Specifications

Full specifications for Vion Series

SDI Input (Vion EX)

2 × HD-BNC 12G-SDI, compliant with SMPTE ST 2082; 8 channels embedded audio per input; maximum two baseband inputs simultaneously
HDMI Input (Vion EX)

2 × mini-HDMI (Type C) with retention screw; up to 3840 × 2160p60; 8 channels embedded audio per input
Balanced Audio Input (Vion EX)

1 × balanced stereo via Phoenix connector
Unbalanced Audio Input (Vion EX)

1 × 3.5 mm (⅛ in.) TRS stereo
Baseband Inputs (Vion NX)

None — IP-only gateway

HDMI Output

2 × full-size HDMI Type A; 8 channels embedded audio per output (both models)
Audio Output

1 × unbalanced stereo via 3.5 mm TRS (both models)

LAN 1 (Vion EX)

100/1000BASE-T, RJ-45
LAN 2 (Vion EX)

1000/2500BASE-T, RJ-45
LAN 1 (Vion NX)

1000/2500BASE-T, RJ-45
LAN 2 (Vion NX)

100/1000BASE-T, RJ-45
USB (Vion EX)

3 × USB 3.0 Type-A, 1 × USB 2.0 Type-A, 1 × USB Type-C, 1 × USB 2.0 Type-B
USB (Vion NX)

5 × USB 3.0 Type-A

H.264 / MPEG-4 AVC

4:2:0 8-bit; up to 100 Mbps
H.265 / HEVC

4:2:0–4:4:4 8-bit and 10-bit; up to 100 Mbps
JPEG XS

4:2:2–4:4:4 8-bit and 10-bit; up to 2000 Mbps
NDI|6 (SpeedHQ)

4:2:2 8-bit and 10-bit; up to 300 Mbps
NDI|HX3

H.264 or H.265; 4:2:0 8-bit and 10-bit; up to 100 Mbps
Audio Codecs

Uncompressed (IPMX/ST 2110 and NDI); AAC-LC / AAC-HE 32–256 Kbps per stereo pair

RTP / RTSP

H.264 and H.265
SRT

Caller, listener, and rendezvous modes; H.264 and H.265
MPEG-2 TS

H.264 and H.265
NDI|6

SpeedHQ codec
NDI|HX3

H.264 or H.265
IPMX

JPEG XS codec
SMPTE ST 2110-22

JPEG XS codec

JPEG XS

1 × 4Kp60 encode or decode; 4 × 1080p60 encode or decode
NDI|6 Full

1 × 4Kp60 encode or decode; 4 × 1080p60 encode or decode
H.264

2 × 4Kp60 encode or decode; 8 × 1080p60 encode or decode
H.265 (4:2:0 / 4:4:4)

2 × 4Kp60 encode or decode; 8 × 1080p60 encode or decode
H.265 (4:2:2 10-bit)

2 × HD encode and decode

Dimensions

210 × 175 × 42 mm (8.27 × 6.89 × 1.65 in.)
Weight

~1.5 kg (3.3 lb), device only
Operating Temperature

0–35 °C (32–95 °F)
Power Supply

120–240 V AC, 120 W
Power Input

19 V DC, 5.5 A maximum (4 A typical)

Dimensions

190 × 148 × 30 mm (7.48 × 5.83 × 1.18 in.)
Weight

~1.0 kg (2.2 lb), device only
Operating Temperature

0–35 °C (32–95 °F)
Power Supply

120–240 V AC, 90 W
Power Input

19 V DC, 4.5 A maximum

Regulatory

CE (EU), FCC (US), ICES-003 (Canada), KC (Korea), RCM (Australia/New Zealand)
Environmental

REACH, EU RoHS
Safety Standards

UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1, CSA C22.2 No. 62368-1, TÜV EN 60950-1, EN 62368-1
Warranty

2 years standard; extended warranty available
