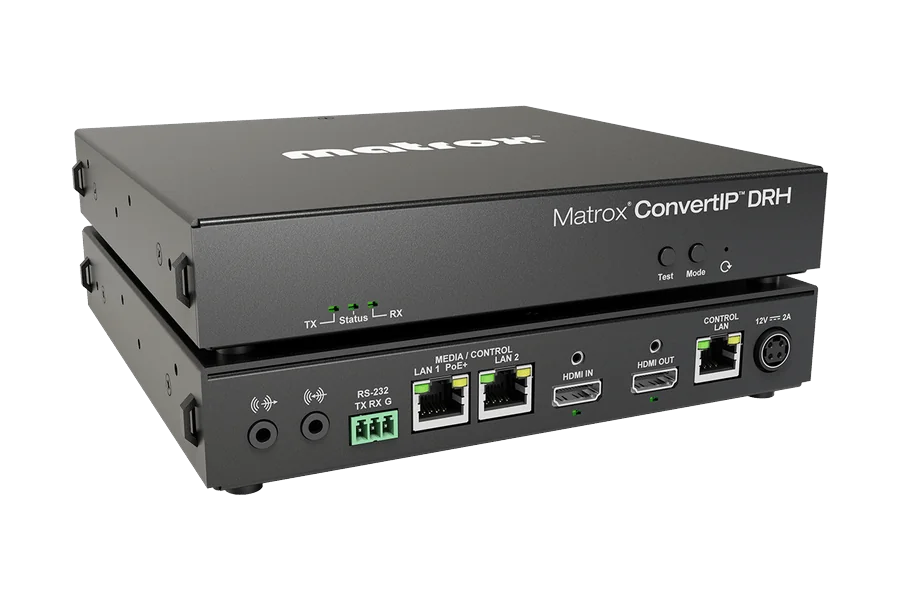

ConvertIP Series

Compact fanless ST 2110 and IPMX encoder/decoder appliances available in HDMI, SDI, and HDBaseT variants across single-port (1G), dual-port (2.5G), and high-speed (10/25GbE) configurations.

Matrox Products

ConvertIP Series

ConvertIP Series
HDMI, 1x RJ45, 1G (2Gbps JPEG XS)

ConvertIP SRH
Our Price: Request a Quote

Get a Quote

ConvertIP Series
HDMI, 2x 2.5GbE RJ45, 2.5G

ConvertIP DRH
Our Price: Request a Quote

Get a Quote

ConvertIP Series
HDMI, 2x SFP28, 10/25GbE

ConvertIP DSH
Our Price: Request a Quote

Get a Quote

ConvertIP Series
12G-SDI, 1x 2.5GbE RJ45, 1G

ConvertIP SRS
Our Price: Request a Quote

Get a Quote

ConvertIP Series
12G-SDI, 2x 2.5GbE RJ45, 2.5G

ConvertIP DRS
Our Price: Request a Quote

Get a Quote

See all 8 models below

The ConvertIP Series delivers compact, fanless SMPTE ST 2110 and IPMX encode/decode in a range of I/O and network configurations designed to bridge professional signal formats — HDMI, 12G-SDI, and HDBaseT — with IP media networks. Eight distinct models span single-port 1GbE through to dual-port 10/25GbE SFP28 connectivity, accommodating installations from small enterprise AV rooms to large broadcast facilities with strict latency requirements. All models produce JPEG XS-compressed ST 2110 streams with latency as low as 1 millisecond on the higher-speed variants.

The HDMI variants (SRH, DRH, DSH) accept standard HDMI sources from PCs, cameras, and AV equipment, while the SDI variants (SRS, DRS, DSS-2) connect directly to broadcast SDI infrastructure at 12G-SDI rates. The HDBaseT model (SRST) provides additional flexibility for installations where HDBaseT cabling is already in place. An SDM variant integrates with SDM-compatible host systems. All ConvertIP units are interoperable with IPMX-capable devices and compatible with existing SMPTE ST 2110 network infrastructure.

ST 2110 and IPMX Compliance

All ConvertIP models produce standards-compliant SMPTE ST 2110 and IPMX streams, ensuring interoperability with compatible encoders, decoders, routers, and monitoring equipment.

As Low as 1 ms Latency

Higher-speed 10/25GbE variants achieve end-to-end latency as low as 1 millisecond with JPEG XS compression, meeting the requirements of live production and interactive contribution workflows.

HDMI, SDI, and HDBaseT I/O

Eight models cover HDMI 2.0, 12G-SDI, and HDBaseT input formats, allowing ConvertIP units to bridge virtually any professional signal source into an IP media network.

Compact Fanless Form Factor

All ConvertIP appliances are passively cooled with no moving parts, supporting silent, reliable operation in 24/7 broadcast and enterprise environments without maintenance overhead.

Technical Specifications

Full specifications for ConvertIP Series

Video Input Interface

1× HDMI 2.1 (SRH, DRH); 1× HDMI 2.1 (DSH); 1.5G, 3G, and 12G SDI — TX mode only (DRS, DSS); 12G SDI — TX mode only (SRS); HDBaseT™ v3 — TX mode only (SRST); Via Intel® SDM connector (SDM — receive only)
Video Output Interface

1× HDMI (passthrough) (SRH, DRH); 1× HDMI zero-latency pass-through in TX mode (DSH); 1.5G, 3G, and 12G SDI — RX mode only (DRS, DSS); 12G SDI — RX mode only (SRS); HDBaseT™ v3 — RX mode only (SRST); Via Intel® SDM connector (SDM)
Maximum Video Resolution

4096 × 2160 60p; select 5K resolutions (HDMI models); all standard desktop GPU resolutions (SDM)
Color Space / Bit Depth

YCbCr 4:2:0 10-bit (future firmware) and 8-bit (future), 4:2:2 10-bit, RGB 4:4:4 8-bit; SDR/HDR (SRH, DRH, SRST); YCbCr 4:2:0 10-bit (future), 4:2:2 10-bit, RGB 4:4:4 10-bit and 8-bit; SDR/HDR (DSH); YCbCr 4:2:2 10-bit; SDR/HDR (DRS, DSS, SRS — SDI models); YCbCr 4:2:0 10-bit and 8-bit, 4:2:2 10-bit, RGB 4:4:4 8-bit and 10-bit; SDR/HDR (SDM)
HDCP Support

HDCP 1.4 and 2.3 (SRH, DRH, DSH, SRST, SDM); Not applicable (DRS, DSS, SRS — SDI models)

Genlock

Bi-Level output support (DRS, DSS); not applicable on other models
VANC Ancillary Data Processing

Yes (DRS, DSS, SRS — SDI models)

Video Scaling

High Quality multi-tap 10-bit Up/Down Scaler (all models)
Video Deinterlacing

Yes (available in a future software update on HDMI and HDBaseT models)
Color Space Conversion

Yes (all models)
Uncompressed Streaming

HD 3 Gbps and 4K 12 Gbps (SMPTE ST 2110-20 uncompressed) (DSH, DRS, DSS, SRST, SDM)

Video Codecs

Pro AV Colibri (included): 4:2:2 10-bit YUV and 4:4:4 8-bit RGB; 100 to 2000 Mbps. JPEG XS (upgrade required): 4:2:2 10-bit YUV and 4:4:4 8-bit RGB; 100 to 2000 Mbps
Compressed Bitrate Range

100 to 2000 Mbps (bitrates vary by resolution)
Default Compressed Bitrates

200 Mbps for HD, 820 Mbps for 4K (SRH, DRH, DRS, DSS, SRST, SRS, SDM); 220 Mbps for HD, 880 Mbps for 4K (DSH)
Audio Codec

Uncompressed PCM (~1 Mbps per channel)
End-to-End Latency

Less than 1/4 frame (<4 ms)

Embedded Audio Channels

Up to 8 channels of audio embedded in HDMI signal (SRH, DRH, DSH); up to 16 channels embedded in SDI output signal (DRS, DSS, SRS); up to 8 channels (SRST, SDM)
Analog Audio Input

Unbalanced analog stereo via 3.5 mm (1/8") jack, Line Level (DRH, DSH, DRS, DSS); none (SRH, SRST, SRS, SDM)

Network Connectors

1× RJ45 PoE+ (1/2.5G) media + control (SRH, SRS); 3× RJ45: LAN 1 PoE+ (1/2.5G) media + control, LAN 2 (1/2.5G) redundant media + control, Control LAN (100/1000 Mbps) control only (DRH, DRS); 2× SFP28 (10/25G, SFP2 redundant) + 1× RJ45 PoE+ dedicated management (100/1000 Mbps) (DSH, DSS); 1× RJ45 PoE+ + 1× SFP28 (10/25G) (SRST); 2× SFP28 (10/25G) + 2× RJ45 (1/2.5G) + 1× RJ45 Control (1G); LAN 2 and SFP2 redundant only (SDM)
IP Addressing

IPv4; IPv6 (available in future software update on some models); DHCP (default) and static IP
Supported Protocols

SMPTE ST 2110 (-10, -22, -30) (SRH, DRH, SRS); SMPTE ST 2110 (-10, -20, -21, -22, -30) (DSH, SRST); SMPTE ST 2110 (-10, -20, -22, -30, -40) (DRS); SMPTE ST 2110 (-10, -20, -21, -22, -30, -40) (DSS); SMPTE ST 2110 (-10, -20, -22, -30) (SDM); SMPTE 2059 (-1, -2) and IPMX TR10 (all models)
Network Redundancy

Yes, SMPTE ST 2022-7 seamless protection switching (DRH, DSH, DRS, DSS, SDM); No (SRH, SRST, SRS)
Network Standard

RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet (RJ45 models); 10 GbE or 25 GbE fiber via SFP28 (SFP models)
PoE+

Yes, IEEE 802.3at Type 2 (all models)

Command & Control

HTTPS over TCP
NMOS Discovery & Control

IS-04 v1.2 and v1.3 (device registration); IS-05 v1.0 and v1.1 (connection management)
RS-232

Yes (available in future firmware) (DRH, DSH, DRS, DSS); No (SRH, SRST, SRS, SDM)
Software Included

ConductIP NMOS-based routing solution
Optional Software

JPEG XS codec license; Crestron Module
Management Software

Matrox ConvertIP Command Center (web UI); Matrox ConvertIP Manager (Windows application)

Power Supply Options

PoE+ (primary, IEEE 802.3at Type 2); Optional external PSU (sold separately): 100–240 V a.c., 0.5A, 50–60 Hz, IEC320-C14 input, 12V DIN4 locking output
Maximum Power Consumption

18 Watts (all models); SDM conforms to Intel SDM-L power consumption range

Form Factor

Standalone appliance, rack-mountable 1U high, 1/3 rack wide (SRH, SRS); Standalone appliance, rack-mountable 1U high, 1/2 rack wide (DRH, DSH, DRS, DSS, SRST); Intel® Smart Display Module (SDM-L) form factor (SDM)
Dimensions

7.13 (D) × 5.5 (W) × 1.42 (H) in / 181 × 138 × 36 mm (SRH); 7.13 (D) × 7.53 (W) × 1.42 (H) in / 181 × 191 × 36 mm (DRH, DSH, DRS, DSS, SRST); 7.88 (D) × 5.5 (W) × 1.39 (H) in / 200 × 138 × 35 mm (SRS); with bracket: 125 (D) × 196 (W) mm; without bracket: 116 (D) × 174 (W) mm (SDM)
Unit Weight

1.44 lbs / 655 g (SRH); 1.40 lbs / 635 g (DRH); 1.66 lbs / 755 g (DSH); 1.47 lbs / 665 g (DRS); 1.70 lbs / 770 g (DSS, SRST); 1.09 lbs / 495 g (SRS); 237 g (SDM)
Cooling

Fanless (SRH, DRH, DSH, DRS, DSS, SRST, SRS); fan with low noise emissions (<24 dB) (SDM)

Operating Conditions

0 to 45 °C; altitude 650–1,013 hPa (0–3,580 m); humidity 20–80% non-condensing (SRH, DRH, DSH, DRS, DSS, SRST, SRS); Conforms to Intel SDM-L specifications (SDM)
Storage Conditions

−40 to 70 °C; altitude 192–1,020 hPa (−50–12,000 m); humidity 5–95% non-condensing

EMC / EMI Device Class

Class A
EMC / EMI Compliance

CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea), RCM (Australia / New Zealand)
Environmental Compliance

China RoHS, EU RoHS, REACH
Warranty

Two-year limited warranty with free online or telephone support (SRH, SDM); three-year limited warranty with free online or telephone support (DRH, DSH, DRS, DSS, SRST, SRS)
Part Numbers

CIP-SRH, CIP-SRH2 (SRH); CIP-DRH, CIP-DRH2 (DRH); CIP-DSH, CIP-DSH2 (DSH); CIP-DRS, CIP-DRS2 (DRS); CIP-DSS, CIP-DSS2 (DSS); CIP-SRST, CIP-SRST2 (SRST); CIP-SRS, CIP-SRS2 (SRS); CIP-SDM2 (SDM)
