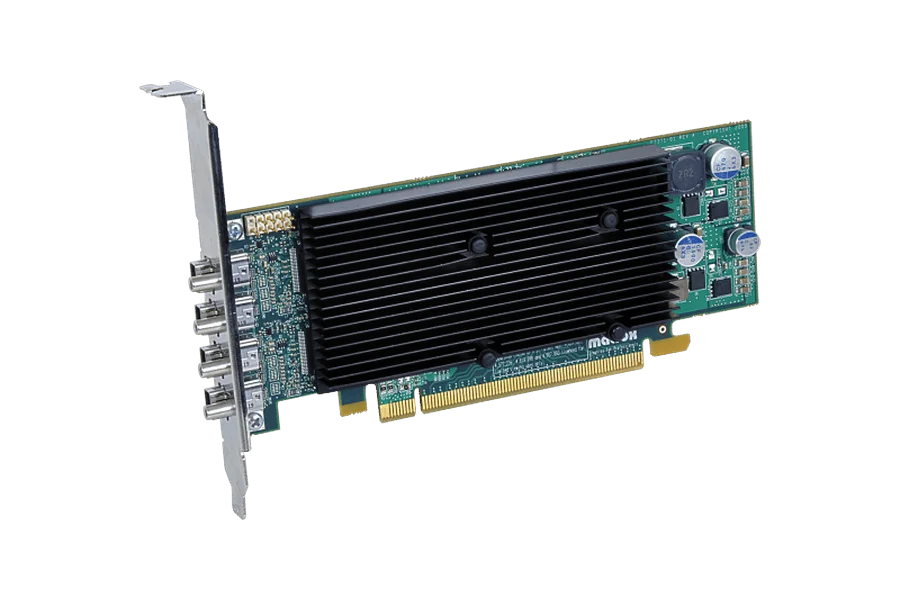

M9148 LP PCIe x16

The Matrox M9148 LP PCIe x16 upgrades the M9140 LP platform with four DisplayPort outputs and increased resolution per display, driving four monitors at up to 2560x1600 simultaneously from a single low-profile card. One gigabyte of onboard memory handles the higher resolution across all four outputs, and the fanless thermal design maintains silent operation for professional environments. A dual-card setup using the optional framelock cable scales the display count to eight independent DisplayPort outputs from a single system.

The combination of four 2560x1600 DisplayPort outputs in a low-profile form factor makes the M9148 LP appropriate for space-constrained professional workstations requiring large canvas multi-display arrangements. Financial trading desks, broadcast master control rooms, simulation workstations, and security operations centres benefit from the expanded resolution per panel compared to the M9140 LP while retaining the same compact card geometry. The M9148 LP operates with mature Matrox display drivers for long-term Windows compatibility in mission-critical environments.
