DSX LE6 D100

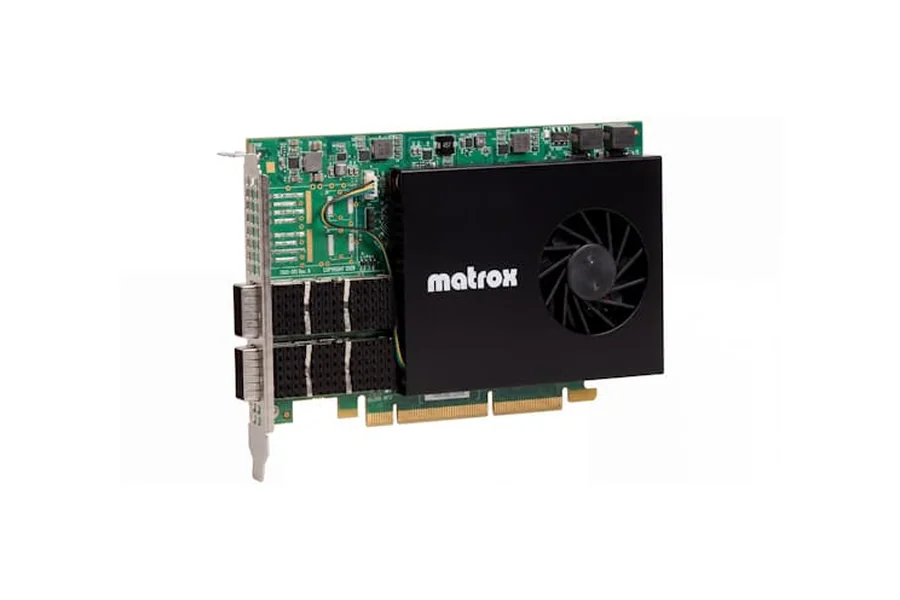

The Matrox DSX LE6 D100 is the highest-capacity card in the Matrox broadcast OEM hardware lineup, providing a single 100GbE network connection via PCIe Gen4 x8 for SMPTE ST 2110 uncompressed IP video at 4K and 8K resolutions. Full hardware offload handles all ST 2110 packetisation and media clock synchronisation without consuming host CPU cycles, enabling the processor to be dedicated entirely to broadcast application execution. This card targets OEM manufacturers building 8K or high-density 4K IP production infrastructure where bandwidth and compute efficiency are both critical.

The DSX LE6 D100 supports up to two simultaneous 8K video flows or eight UHD 4Kp60 flows from a single card, providing a substantial increase in channel density over dual 25GbE alternatives. PCIe Gen4 x8 provides sufficient bus bandwidth for 100GbE data throughput without requiring a Gen4 x16 slot. As with other Matrox DSX products, the DSX LE6 D100 integrates with the DSX SDK for OEM software development and is not a product for end-user broadcast operators.
