LUMA Pro Series

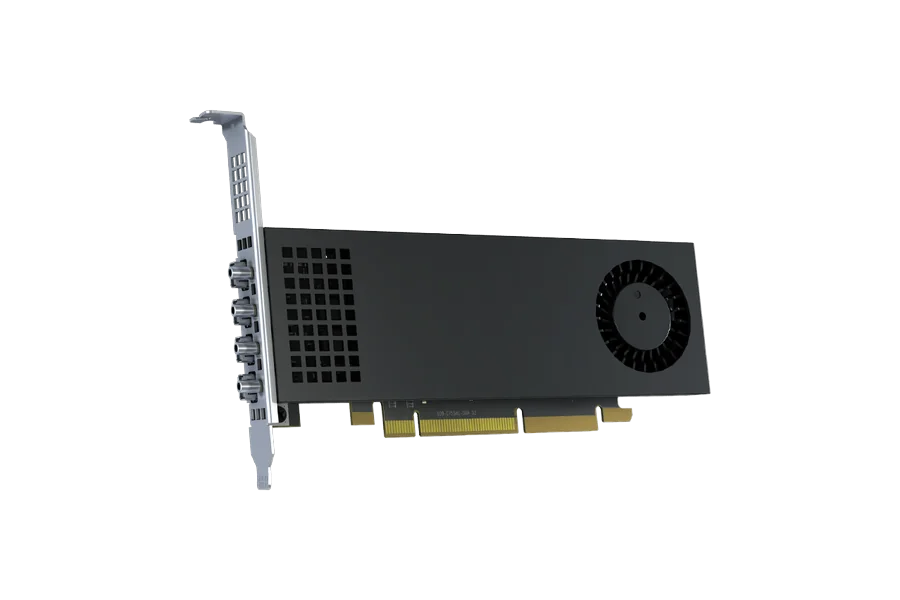

The Matrox LUMA Pro Series is a family of single-slot PCIe 4.0 graphics cards based on the Intel Arc GPU architecture, designed for professional video wall and digital signage applications where multiple synchronised high-resolution displays must be driven from a single card. The LUMA Pro A310 Quad and A380 Quad models each provide four Mini DisplayPort 2.0 or full-size DisplayPort 2.0 outputs capable of driving dual 8K displays or four high-resolution panels per card. The A380 Octal doubles the output count to eight Mini DisplayPort 2.0 connections in the same single-slot form factor.

DisplayPort 2.0 on all LUMA Pro models provides the bandwidth required for 8K resolution, high frame rate, and high colour depth simultaneously, without the resolution or frame rate compromises imposed by earlier DisplayPort versions. Output synchronisation across all connected displays is maintained in hardware, ensuring frame-aligned rendering across video wall panels. The LUMA Pro Series is targeted at control room operators, digital signage integrators, and broadcast facilities requiring multi-display output with professional reliability and a compact PCIe 4.0 x8 or x16 form factor.
